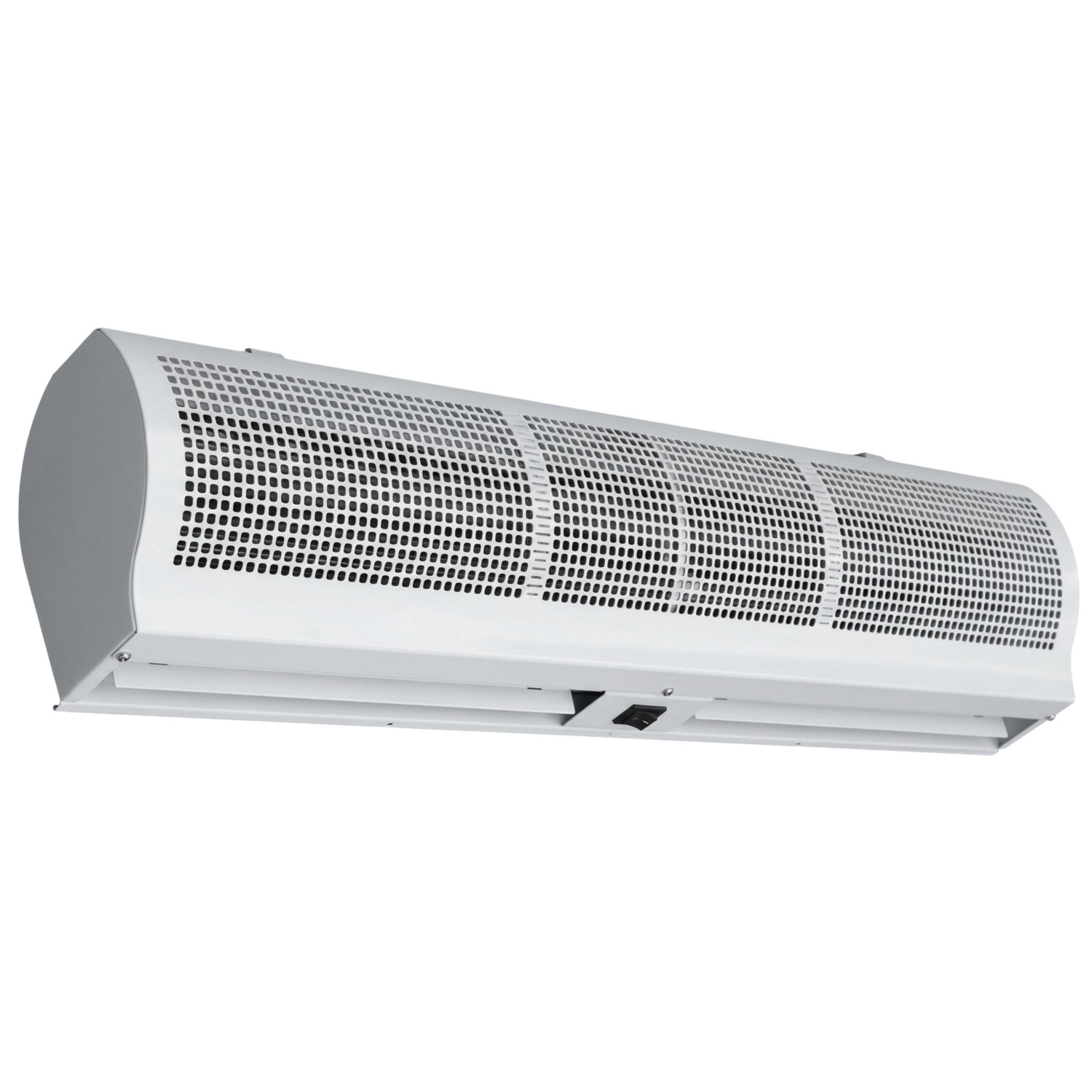

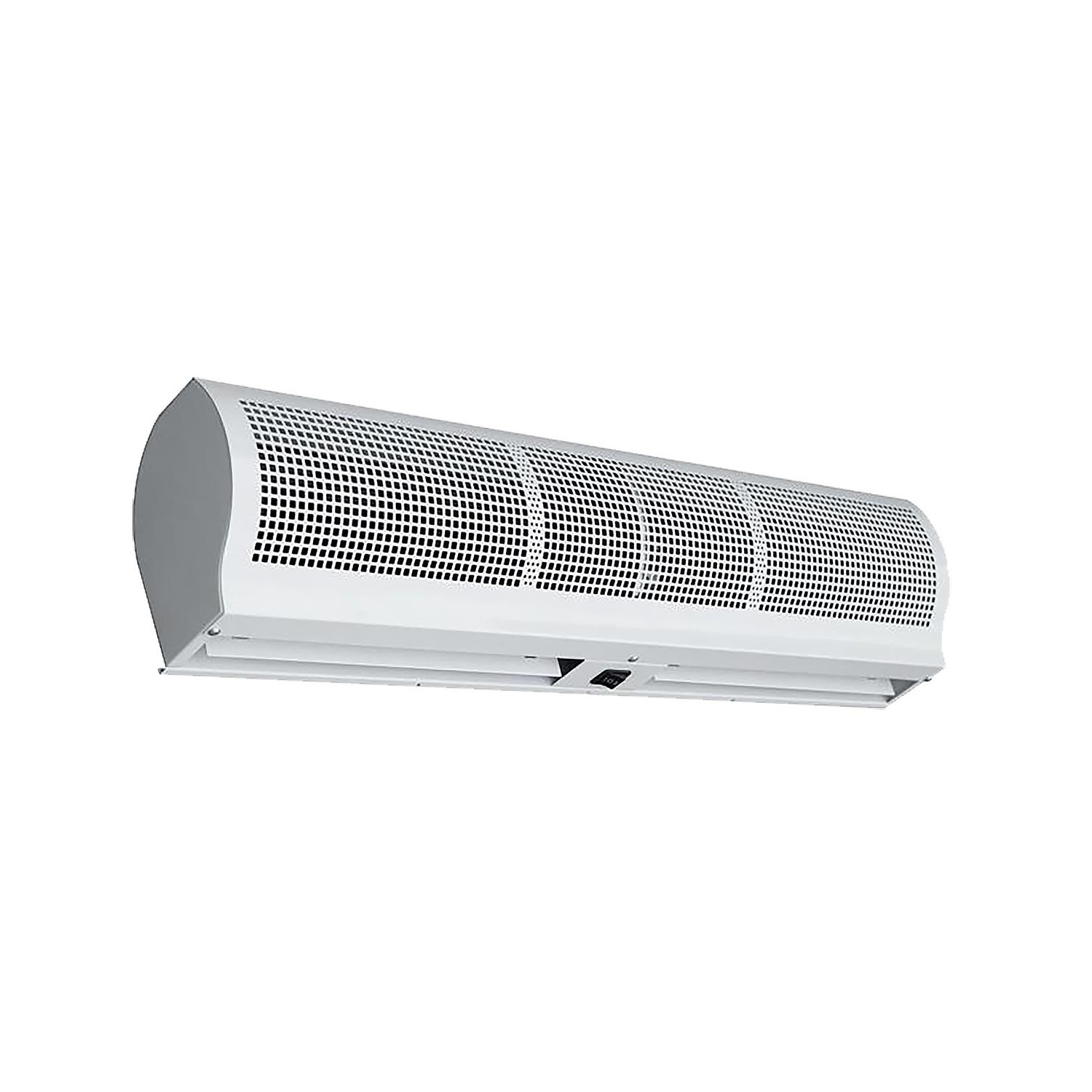

ecox ACUB09CA Air Curtain 36 in, 110 V, 60 Hz, 1 Ph, 100 W. For Residential or Commercial Use
High performance: Provides 1480 m3/h airflow with a 10 to 11 m/s air speed, helping maintain a stable and comfortable indoor environment.
Protective function: Helps block dust, insects, and outside hot or cold air, keeping indoor temperatures consistent and improving energy efficiency.
Quiet operation: Operates below 45 dB, making it suitable for retail spaces, restaurants, offices, residential areas, and more.
Recommended installation: Designed to be mounted 2.51 to 3.28 yd above the floor and ideal for door openings of 35.43 in width.
Durable design: Compact 36 x 7 x 5.5 in body with an efficient 100 W motor. Lightweight construction built for continuous use and easy installation.

Weight : 18.08 LBR
Volume : 1.576799 FTQ
Model : ACUB09CA
UPC-EAN : 850081768074

Specifications

  • Model: ACUB09CA
  • Type: Door air curtain
  • Width: 36 in (900 mm)
  • Voltage / Frequency / Phase: 110 V / 60 Hz / 1 Ph
  • Motor Power: 100 W
  • Airflow: Approximately 871 CFM (1480 m³/h)
  • Air Speed: Approximately 33-36 ft/s (10-11 m/s)
  • Sound Level: Below 45 dB

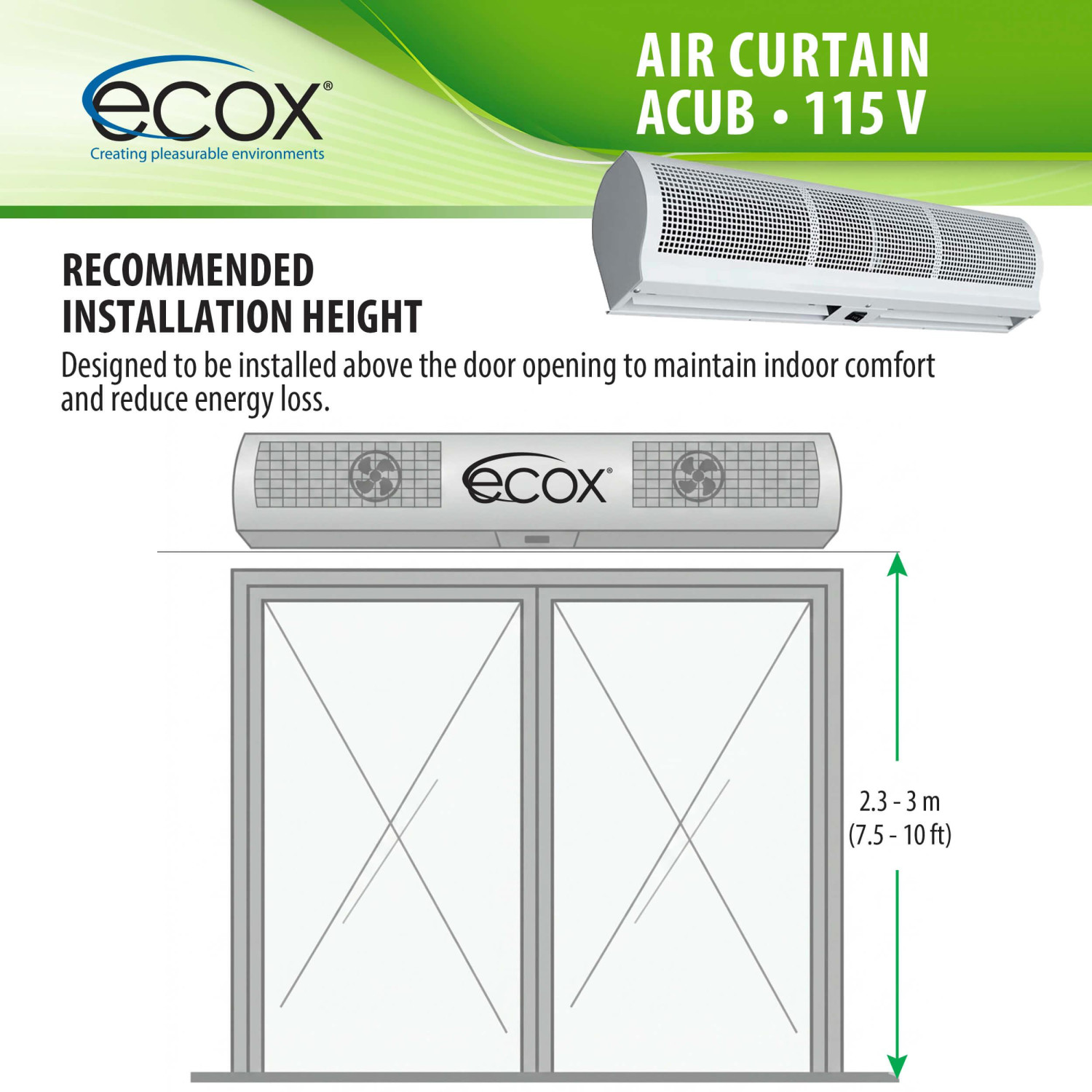

  • Mounting Height: 7.5 to 10 ft (2.3 to 3 m)

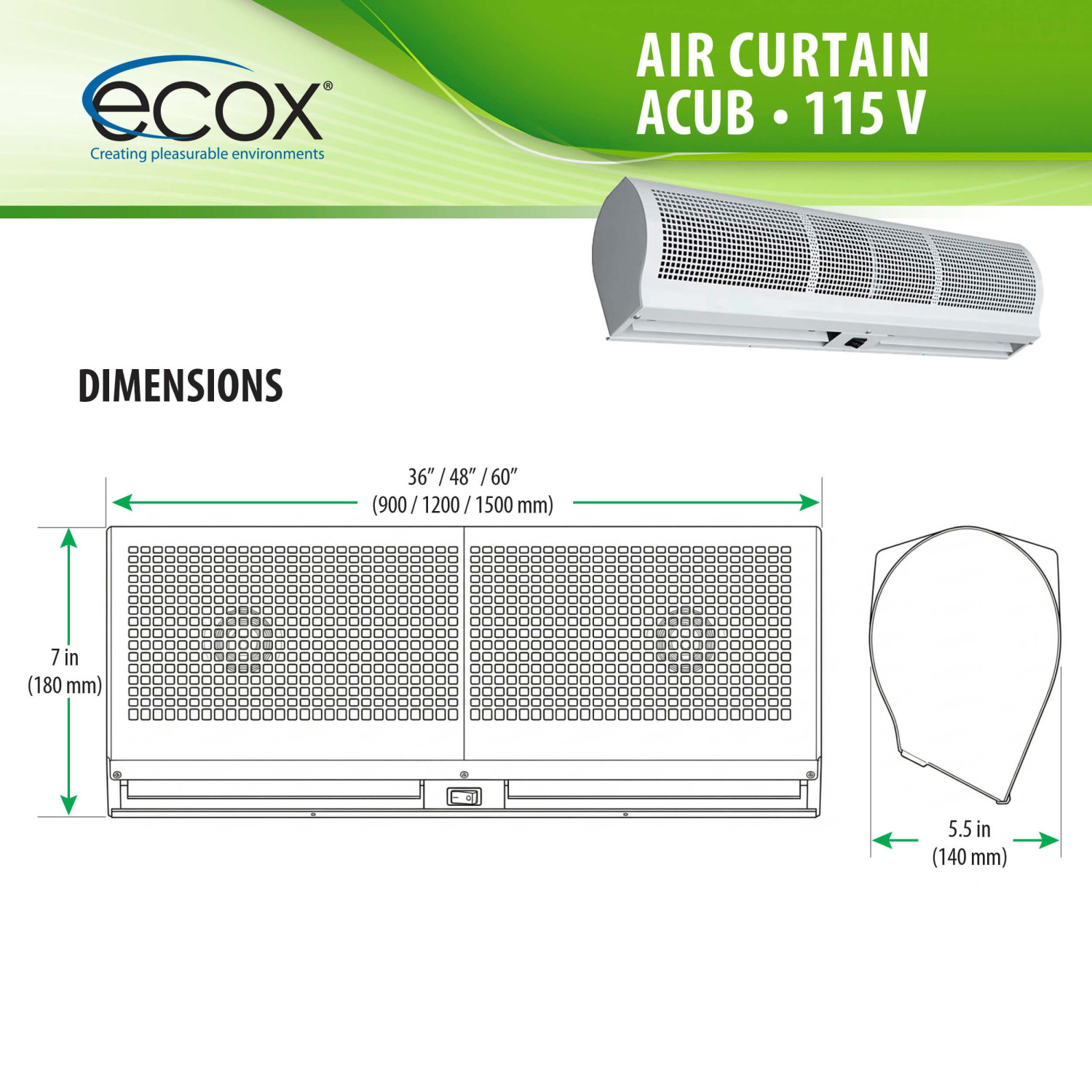

  • Body Size: 36 x 7 x 5.5 in
  • Included: Remote control
  • Use: Residential or commercial

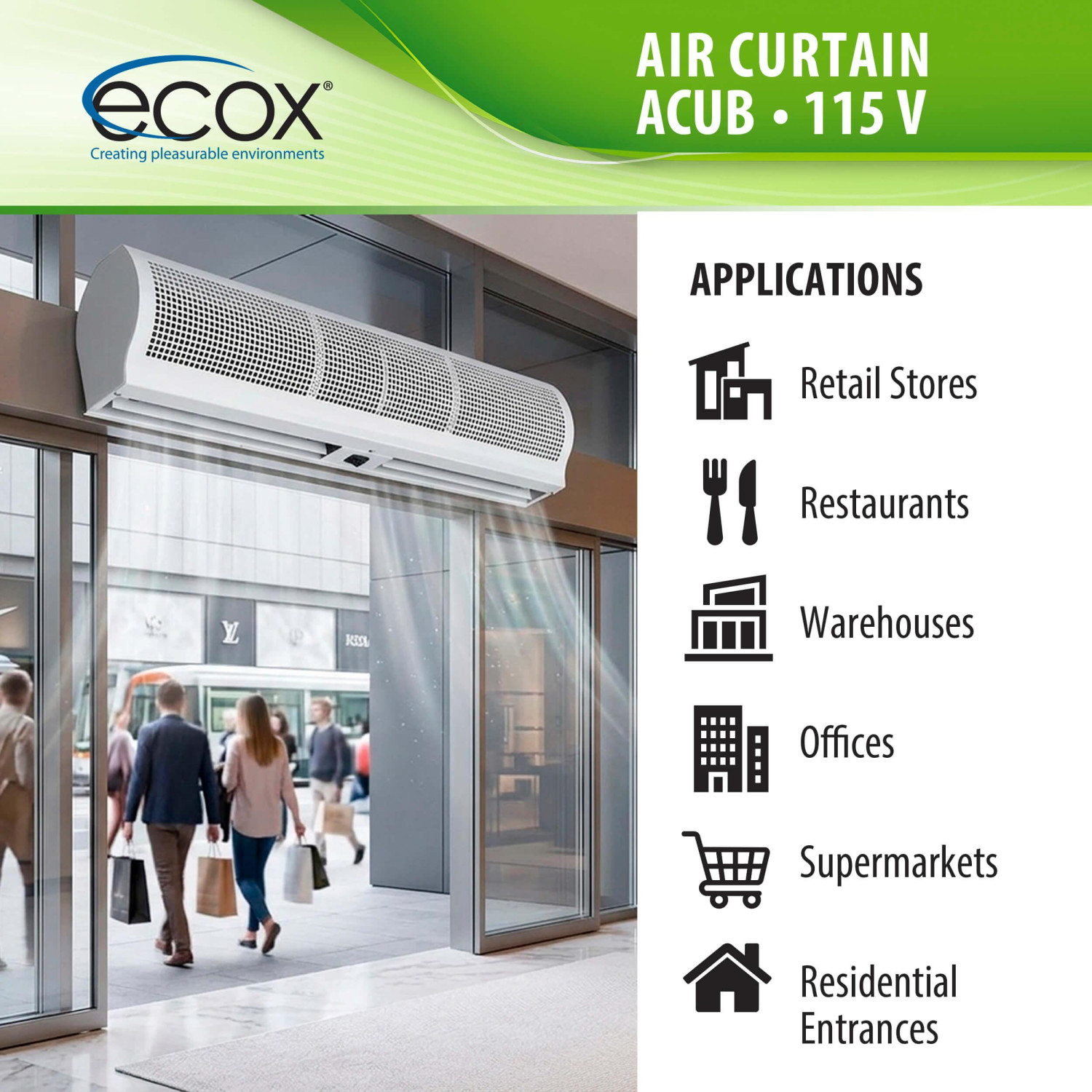

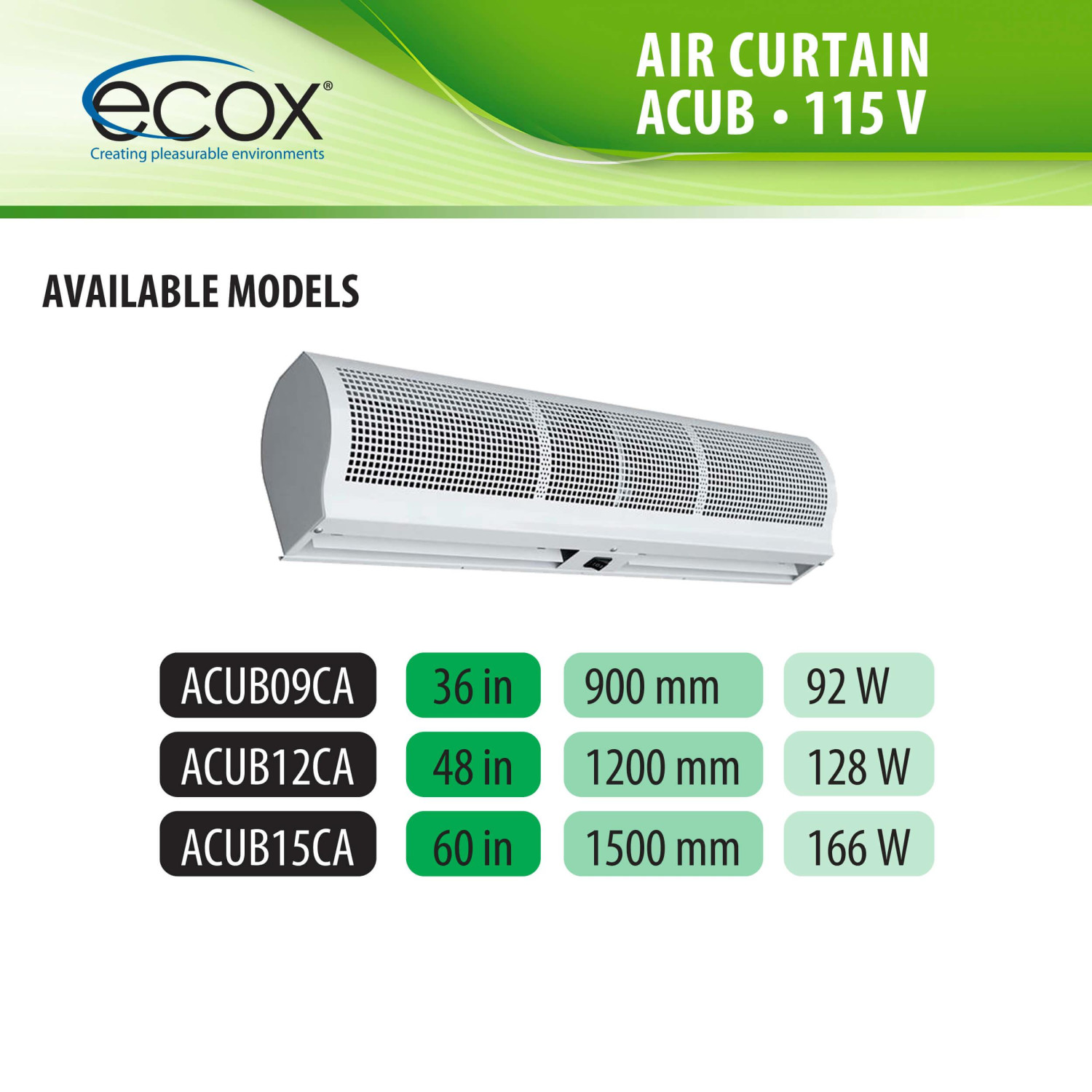

Suited to retail stores, restaurants, offices, warehouses, supermarkets, and residential entrances. For wider doorways, the same series offers 48 in and 60 in versions. Please confirm the model and electrical supply (110 V, 60 Hz, single-phase) before ordering.

GACUB09CA
New

Data sheet

Product Feature
  • Durable design: Compact 36 x 7 x 5.5 in body with an efficient 100 W motor. Lightweight construction built for continuous use and easy installation.
  • High performance: Provides 1480 m3/h airflow with a 10 to 11 m/s air speed, helping maintain a stable and comfortable indoor environment.
  • Protective function: Helps block dust, insects, and outside hot or cold air, keeping indoor temperatures consistent and improving energy efficiency.
  • Quiet operation: Operates below 45 dB, making it suitable for retail spaces, restaurants, offices, residential areas, and more.
  • Recommended installation: Designed to be mounted 2.51 to 3.28 yd above the floor and ideal for door openings of 35.43 in width.
  • Weight
    18.08 LBR
    Volume
    1.576799 FTQ
    Model
    ACUB09CA
    UPC-EAN
    850081768074

    Download

    Installation manual

    Installation manual

    Download (782.61KB)
