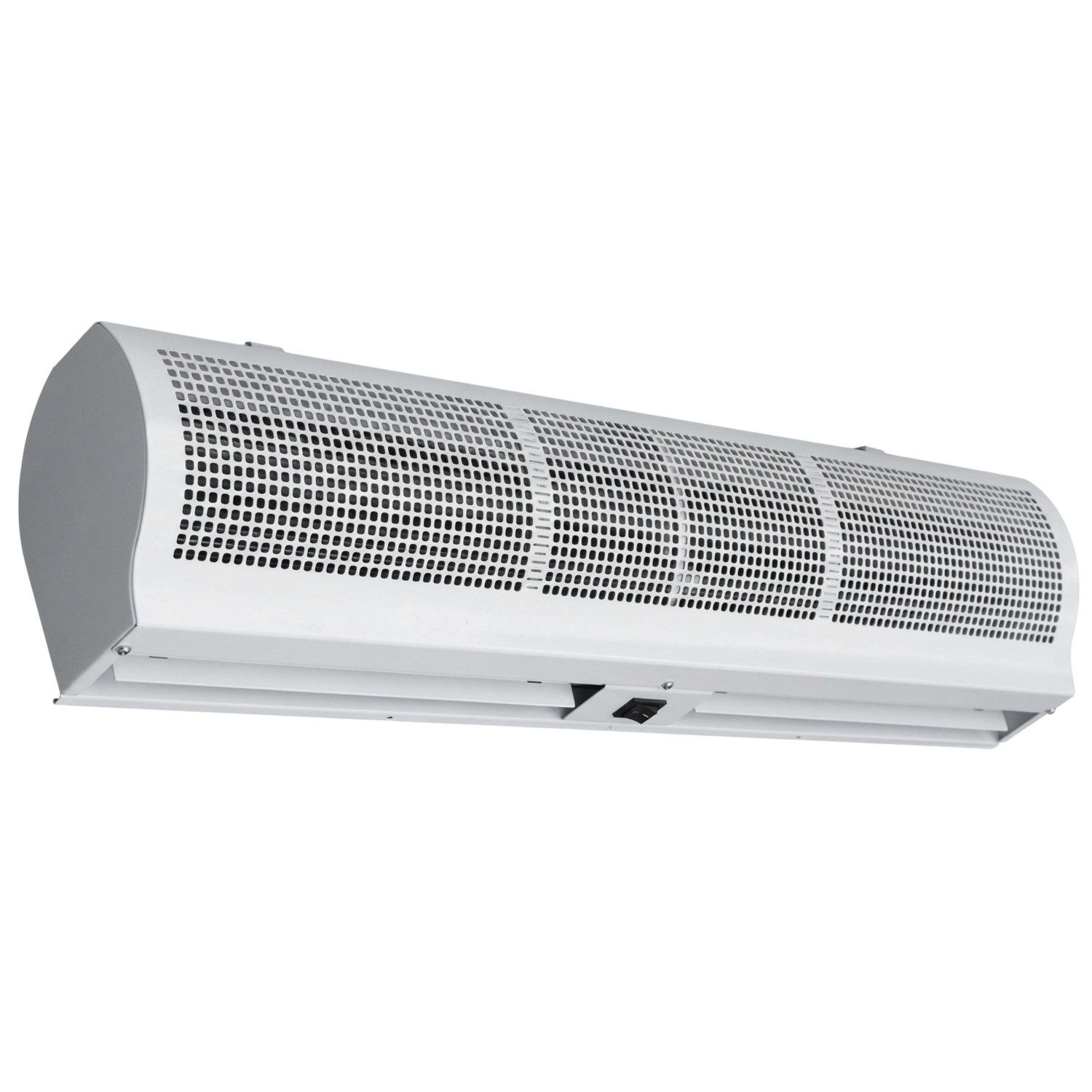

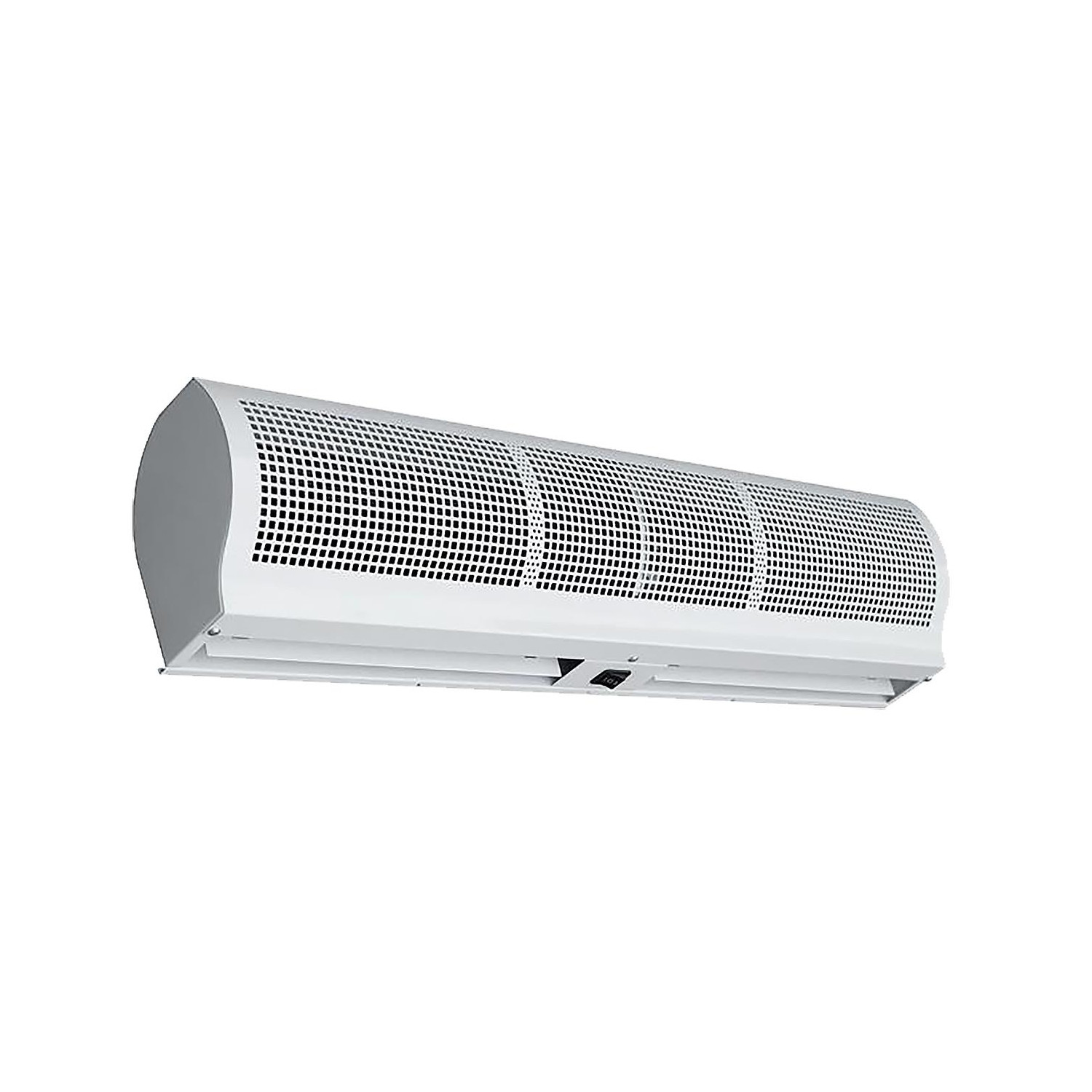

ecox ACUB15CA Air Curtain 60 in, 110 V, 60 Hz, 1 Ph, 175 W. For Residential or Commercial Use
High performance: Provides 2530 m3/h airflow with a 10 to 11 m/s air speed, ideal for wide entryways that require effective climate separation.
Protective function: Helps prevent insects, dust, and outside air from entering, improving indoor hygiene and maintaining stable temperature.
Quiet operation: Operates below 49 dB, making it suitable for supermarkets, hotels, warehouses, restaurants, and residential use.
Recommended installation: Designed for mounting 2.51 to 3.28 yd above the floor and ideal for door openings up to 59.05 in width.
Durable design: Strong 60 x 7 x 5.5 in build with a heavy duty 175 W motor. Engineered for continuous commercial operation and easy installation.

Weight : 29.3214 LBR
Volume : 2.572673 FTQ
Model : ACUB15CA
UPC-EAN : 850081768098

Specifications

  • Model: ACUB15CA
  • Type: Air curtain
  • Recommended door width: Up to 60 in (1500 mm)
  • Voltage: 110 V
  • Phase / Frequency: 1 Ph / 60 Hz
  • Motor power: 175 W
  • Airflow: 2530 m³/h (approximately 1,490 CFM)
  • Air speed: 33 to 36 ft/s
  • Noise level: Below 49 dB

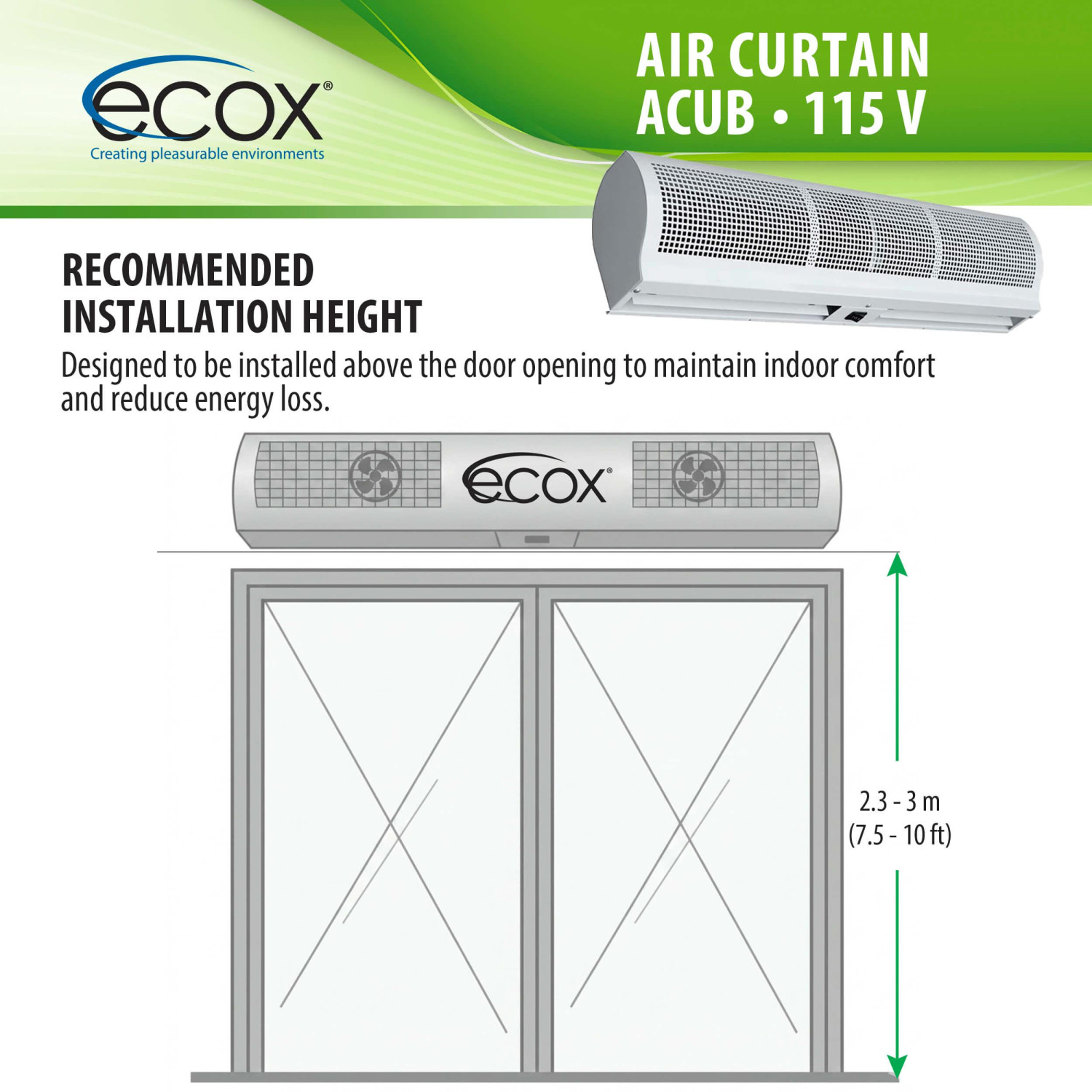

  • Mounting height: 7.5 to 10 ft

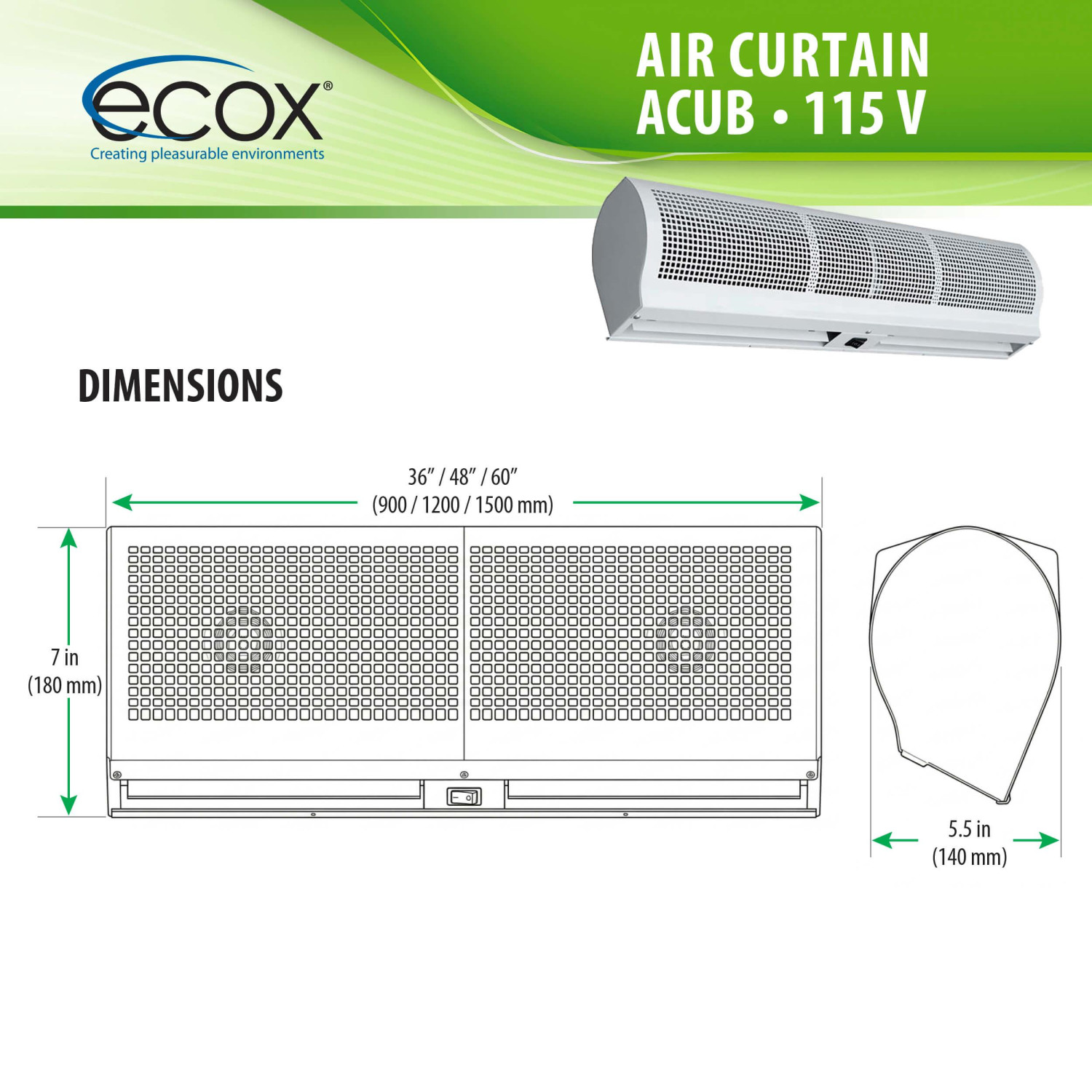

  • Dimensions: 60 x 7 x 5.5 in
  • Typical uses: Retail stores, restaurants, offices, warehouses, supermarkets, residential entrances

Air curtain sized for 60 in wide openings, suited to retail stores, restaurants, offices, warehouses, supermarkets, and residential entrances. Please confirm the model and the 110 V, 60 Hz, single-phase power supply before ordering.

GACUB15CA
3 Items
New

Data sheet

Product Feature
  • Durable design: Strong 60 x 7 x 5.5 in build with a heavy duty 175 W motor. Engineered for continuous commercial operation and easy installation.
  • High performance: Provides 2530 m3/h airflow with a 10 to 11 m/s air speed, ideal for wide entryways that require effective climate separation.
  • Protective function: Helps prevent insects, dust, and outside air from entering, improving indoor hygiene and maintaining stable temperature.
  • Quiet operation: Operates below 49 dB, making it suitable for supermarkets, hotels, warehouses, restaurants, and residential use.
  • Recommended installation: Designed for mounting 2.51 to 3.28 yd above the floor and ideal for door openings up to 59.05 in width.
  • Weight
    29.3214 LBR
    Volume
    2.572673 FTQ
    Model
    ACUB15CA
    UPC-EAN
    850081768098

    Download

    Installation manual

    Installation manual

    Download (782.61KB)
