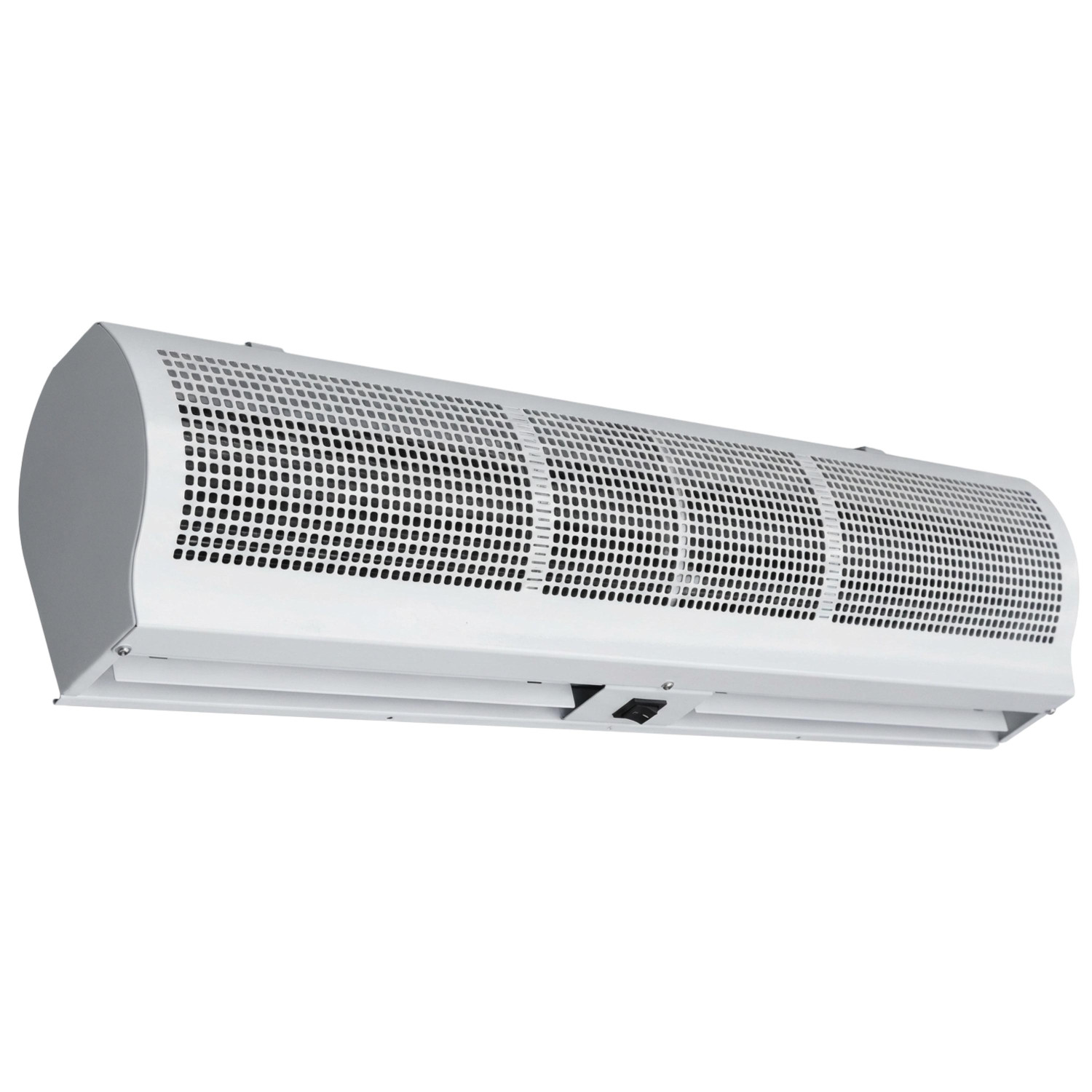

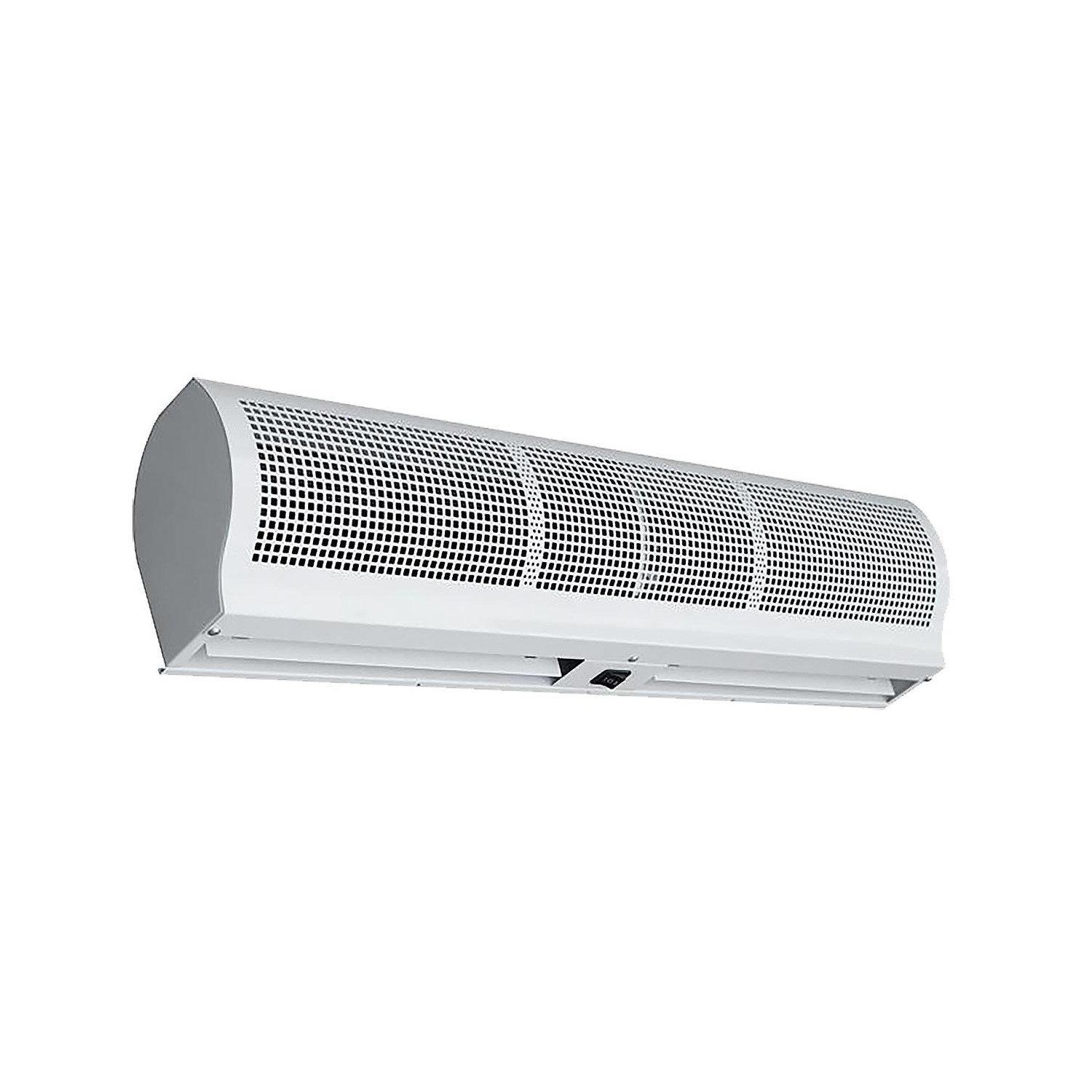

ecox ACUB12CA Air Curtain 48 in, 110 V, 60 Hz, 1 Ph, 130 W. For Residential or Commercial Use
High performance: Delivers 2030 m3/h airflow with a 10 to 11 m/s air speed, helping maintain indoor comfort and airflow stability.
Protective function: Minimizes dust, insects, and unwanted outdoor air, helping maintain indoor climate and reduce HVAC energy loss.
Quiet operation: Runs below 48 dB, ideal for storefronts, restaurants, offices, residential settings, and similar applications.
Recommended installation: Designed for mounting 7 to 10 ft high and suitable for door openings of 47.24 in width.
Durable design: Compact 48 x 7 x 5.5 in housing with a reliable 130 W motor. Lightweight and built for long hours of continuous operation.

Weight : 23.1485 LBR
Volume : 2.074736 FTQ
Model : ACUB12CA
UPC-EAN : 850081768081

Specifications

  • Model: ACUB12CA
  • Product type: Air curtain
  • Door width: Up to 48 in (1200 mm)
  • Voltage: 110 V
  • Frequency: 60 Hz
  • Phase: 1 Ph
  • Motor power: 130 W
  • Airflow: 2030 m³/h (1195 CFM)
  • Air speed: 10 to 11 m/s (33 to 36 ft/s)
  • Noise level: Below 48 dB

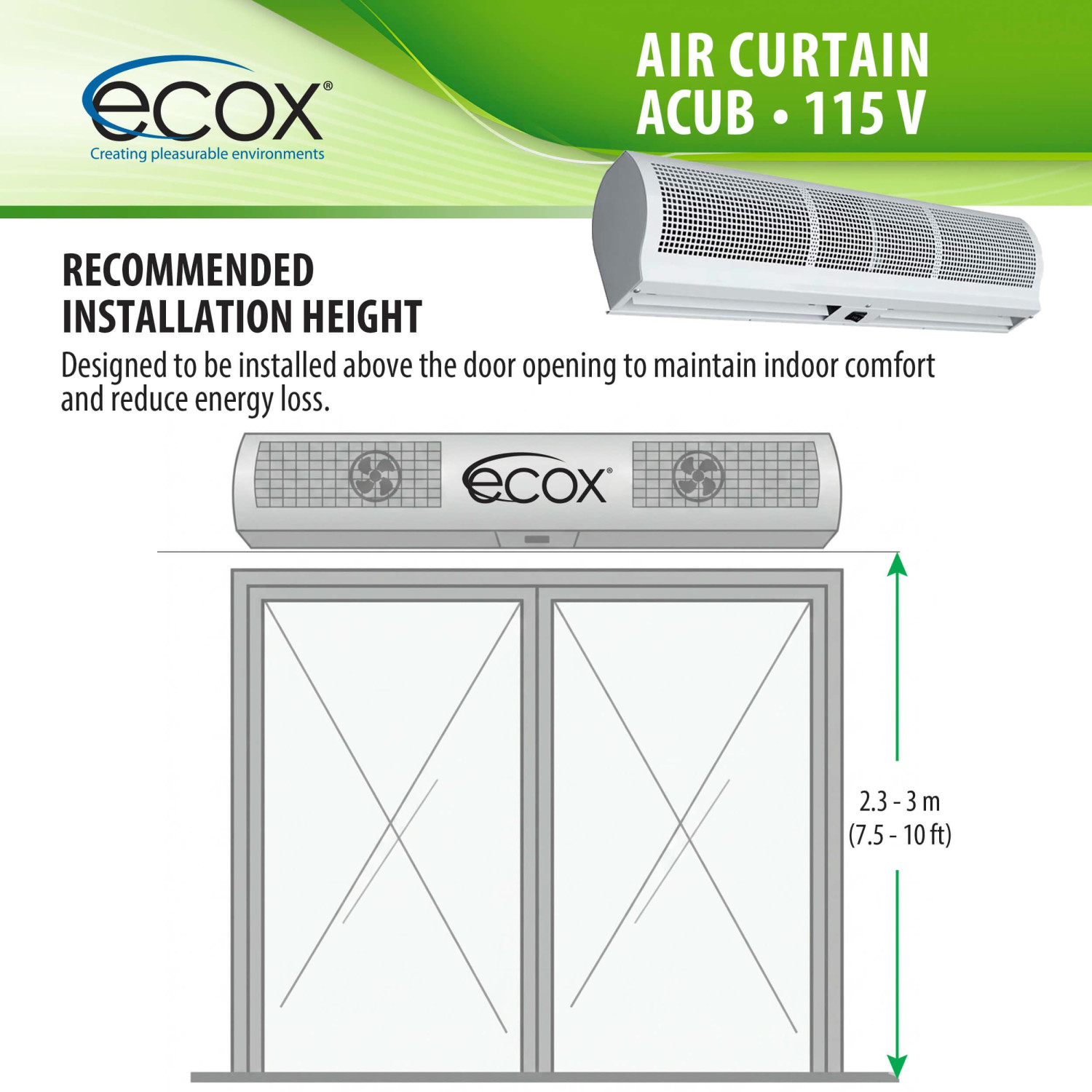

  • Recommended mounting height: 7.5 to 10 ft (2.3 to 3 m)

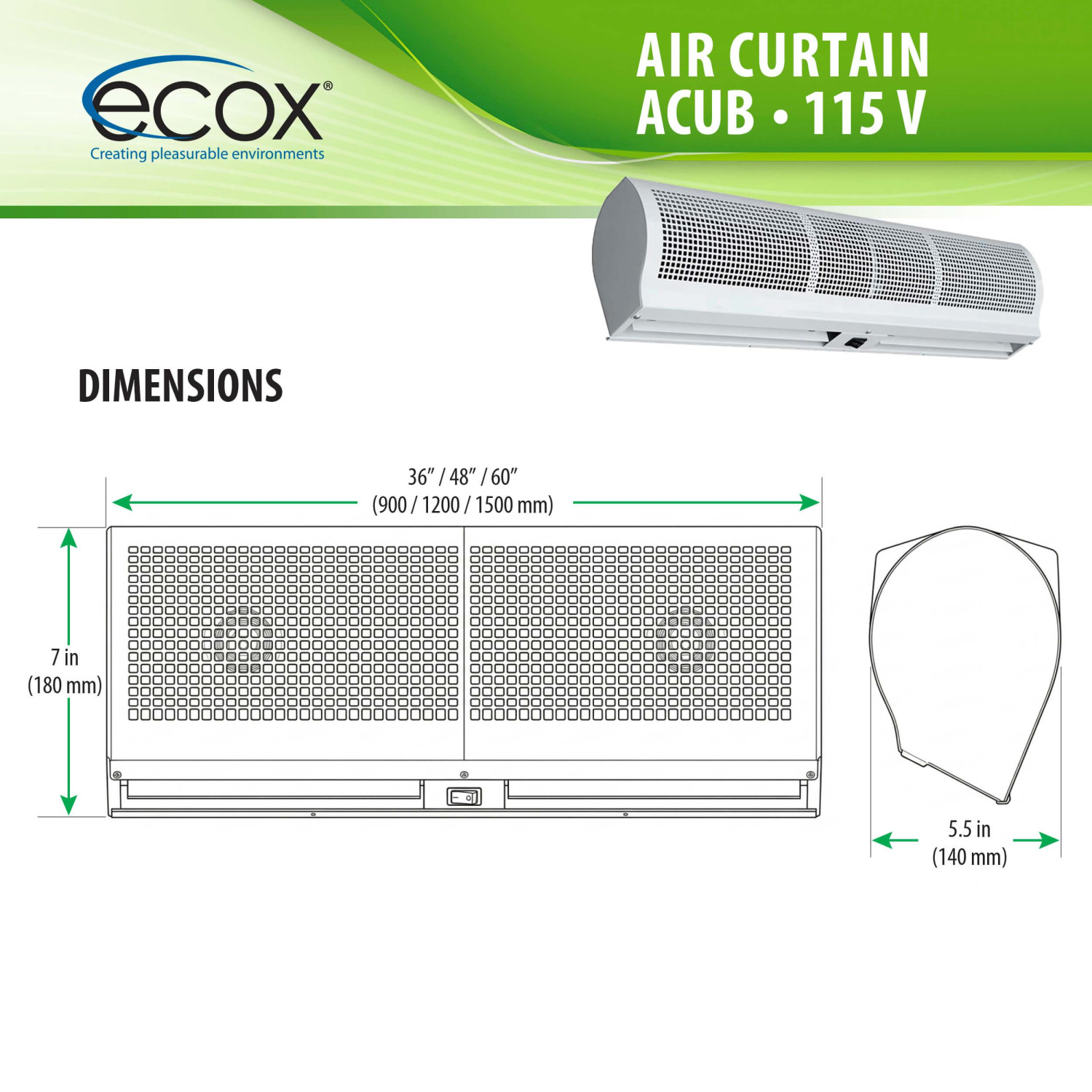

  • Housing dimensions: 47.2 x 7.1 x 5.5 in (120 x 18 x 14 cm)
  • Remote control: Included
  • Use: Residential or commercial

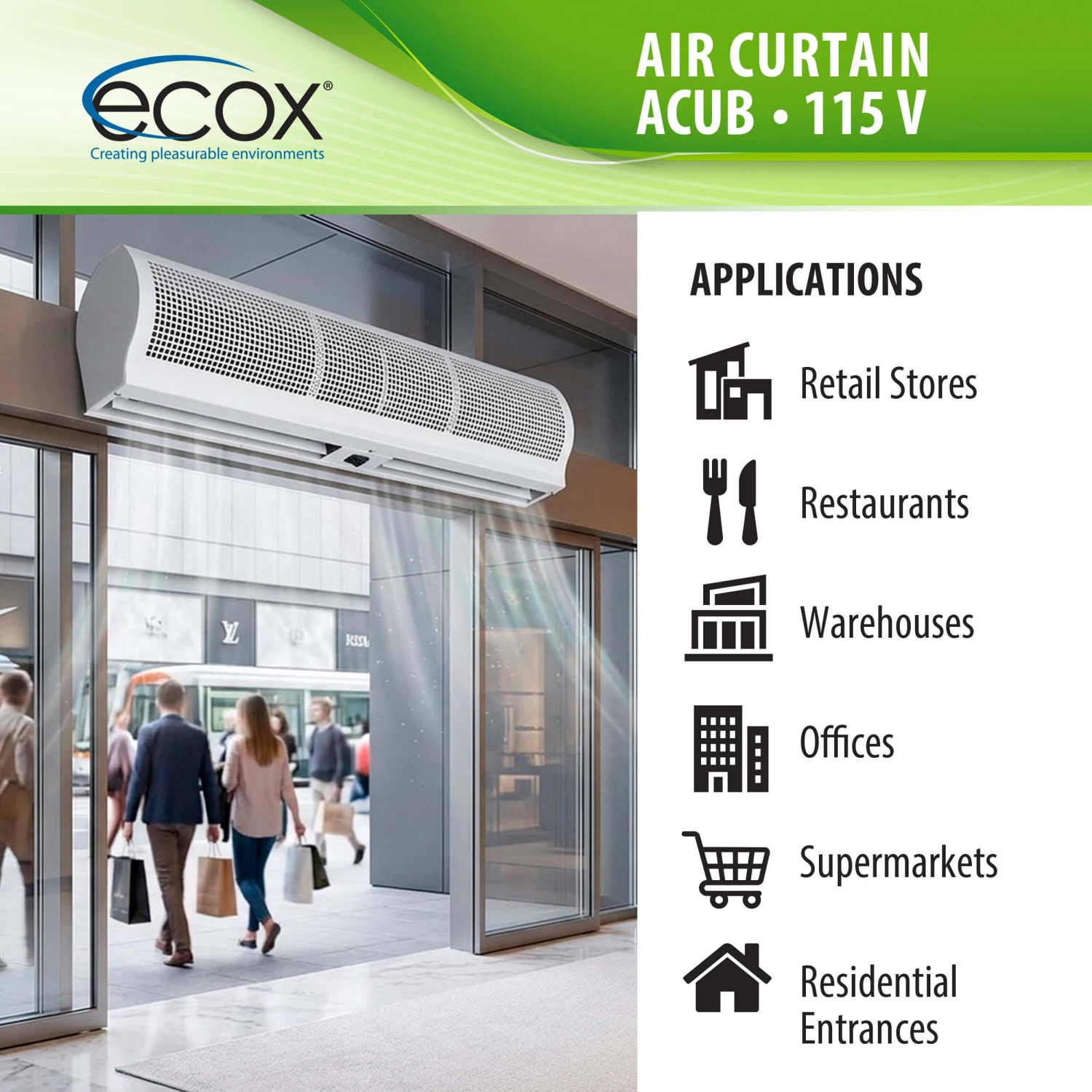

Typical installations include storefronts, restaurant entrances, offices, and home doorways. For wider openings, the ecox ACUB line also offers a 36 in model (ACUB09CA, 100 W) and a 60 in model (ACUB15CA, 175 W). Please confirm the model and the electrical supply (110 V, 60 Hz, single-phase) before ordering.

GACUB12CA
1 Item
New

Data sheet

Product Feature
  • Durable design: Compact 48 x 7 x 5.5 in housing with a reliable 130 W motor. Lightweight and built for long hours of continuous operation.
  • High performance: Delivers 2030 m3/h airflow with a 10 to 11 m/s air speed, helping maintain indoor comfort and airflow stability.
  • Protective function: Minimizes dust, insects, and unwanted outdoor air, helping maintain indoor climate and reduce HVAC energy loss.
  • Quiet operation: Runs below 48 dB, ideal for storefronts, restaurants, offices, residential settings, and similar applications.
  • Recommended installation: Designed for mounting 7 to 10 ft high and suitable for door openings of 47.24 in width.
  • Weight
    23.1485 LBR
    Volume
    2.074736 FTQ
    Model
    ACUB12CA
    UPC-EAN
    850081768081

    Download

    Installation manual

    Installation manual

    Download (782.61KB)
